When it comes to creating a comfortable and energy-efficient home environment, the Maytag Air Handler Model B5BMX60KC ECM Motor stands out as a top-tier choice for HVAC systems. This advanced air handler, part of Maytag’s B5BMX series, is designed to deliver exceptional performance, quiet operation, and energy savings, thanks to its Electronically Commutated Motor (ECM).
Whether you’re upgrading your home’s heating and cooling system or building a new one, the Maytag Air Handler Model B5BMX60KC ECM Motor offers unmatched reliability and versatility. This comprehensive guide explores its features, benefits, installation options, and maintenance tips, making it your go-to resource for understanding this powerful HVAC component.
What Is the Maytag Air Handler Model B5BMX60KC ECM Motor?
The Maytag Air Handler Model B5BMX60KC ECM Motor is a high-efficiency air handler designed for residential split systems, compatible with both air conditioners and heat pumps. With a cooling capacity of 60,000 BTU (5 tons) and a 13/14 SEER rating, this unit is built to handle large homes or spaces requiring robust climate control..

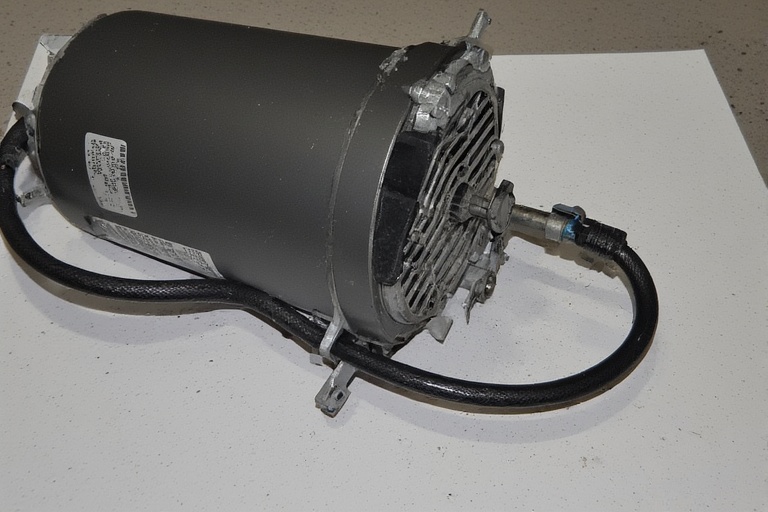

The ECM (Electronically Commutated Motor) is the heart of the system, offering variable-speed technology that adjusts airflow to match your home’s needs, ensuring consistent temperatures and energy efficiency.
The Maytag Air Handler Model B5BMX60KC ECM Motor is part of the B5BMX series, manufactured by Nortek Global HVAC under the Maytag brand. It features a multi-poise design, allowing installation in horizontal, upflow, downflow, or vertical configurations, making it adaptable to various home layouts. Its galvanized steel cabinet, plastic drain pan, and built-in filter rack further enhance its durability and ease of maintenance.
Key Features of the Maytag Air Handler Model B5BMX60KC ECM Motor
The Maytag Air Handler Model B5BMX60KC ECM Motor is packed with features that set it apart in the HVAC industry. Here’s a detailed look at what makes it exceptional:
1. Energy-Efficient ECM Motor
The Maytag Air Handler Model B5BMX60KC ECM Motor features a variable-speed ECM motor that optimizes energy usage by adjusting airflow based on demand. Unlike traditional PSC motors, the ECM motor reduces energy consumption by up to 30%, lowering utility bills while maintaining comfort.
2. Quiet Operation
With its advanced blower design, the Maytag Air Handler Model B5BMX60KC ECM Motor ensures smooth and quiet on/off cycles. This minimizes noise, making it ideal for homes where tranquility is a priority.
3. Multi-Poise Versatility
The Maytag Air Handler Model B5BMX60KC ECM Motor can be installed in multiple orientations—horizontal, upflow, downflow, or vertical—making it suitable for attics, basements, or closets. This flexibility simplifies installation in diverse home layouts.
4. Built-In Filter Rack
The unit includes a built-in filter rack, making air filter maintenance straightforward. This feature enhances indoor air quality by optimizing filtration and humidity control.
5. Durable Construction
The Maytag Air Handler Model B5BMX60KC ECM Motor is housed in a galvanized steel cabinet with a 1.5-mil polyester-urethane finish, offering corrosion resistance and long-term durability. The plastic drain pan prevents rust, extending the unit’s lifespan.
Benefits of Choosing the Maytag Air Handler Model B5BMX60KC ECM Motor
The Maytag Air Handler Model B5BMX60KC ECM Motor offers numerous advantages for homeowners and contractors. Here are some key benefits:
1. Energy Savings
The ECM motor’s variable-speed technology reduces energy consumption, making the Maytag Air Handler Model B5BMX60KC ECM Motor a cost-effective choice for long-term savings on utility bills.
2. Enhanced Comfort
With 16 field-selectable cooling and heating airflows, the Maytag Air Handler Model B5BMX60KC ECM Motor ensures precise temperature control, maintaining consistent comfort throughout your home.
3. Improved Air Quality
The unit’s design reduces air stratification, optimizing humidity removal and filtration. This results in cleaner, healthier indoor air, ideal for allergy sufferers.
4. Quiet Performance
The Maytag Air Handler Model B5BMX60KC ECM Motor operates quietly, making it perfect for bedrooms or living spaces where noise can be disruptive.
5. Long-Lasting Reliability
Backed by Maytag’s 5-year limited parts warranty, the Maytag Air Handler Model B5BMX60KC ECM Motor is built to withstand years of use with proper maintenance.
Technical Specifications of the Maytag Air Handler Model B5BMX60KC ECM Motor
Understanding the technical details of the Maytag Air Handler Model B5BMX60KC ECM Motor is crucial for making an informed purchase. Here are the key specs:
- Cooling Capacity: 60,000 BTU (5 tons)
- SEER Rating: 13/14 SEER (when paired with compatible outdoor units)
- Motor Type: Variable-speed ECM, 3/4 HP
- Airflow: Up to 1,915 CFM
- Refrigerant: R-410A
- Dimensions: 56”H x 22-1/2”W x 22”D
- Weight: 140 lbs
- Connection Sizes: Suction-3/8”, Liquid-7/8”
- Metering Device: Thermal Expansion Valve (TXV)
- Voltage: 208-230V, 60 Hz, single-phase
- Compatible Heat Kits: H8HK005-20H KW (sold separately)
These specifications make the Maytag Air Handler Model B5BMX60KC ECM Motor suitable for large homes or commercial spaces requiring efficient cooling and heating.
Installation Considerations for the Maytag Air Handler Model B5BMX60KC ECM Motor
Proper installation is key to maximizing the performance of the Maytag Air Handler Model B5BMX60KC ECM Motor. Here are some tips:
- Professional Installation: Hire a licensed HVAC technician to ensure proper setup and compatibility with your outdoor unit. The unit must be matched with a compatible air conditioner or heat pump for optimal efficiency.
- Space Requirements: Ensure adequate space for the unit’s 56” height and multi-poise configuration. Check clearance for maintenance access.
- Electrical Setup: The Maytag Air Handler Model B5BMX60KC ECM Motor requires a 208-230V power supply. Verify that your home’s electrical system can support it.
- Ductwork Compatibility: Confirm that your ductwork aligns with the unit’s airflow capacity (up to 1,915 CFM) to avoid inefficiencies.
Maintenance Tips for the Maytag Air Handler Model B5BMX60KC ECM Motor
To keep the Maytag Air Handler Model B5BMX60KC ECM Motor running smoothly, follow these maintenance tips:
- Regular Filter Changes: Replace or clean the air filter every 1-3 months to maintain airflow and indoor air quality.
- Clean the Drain Pan: Inspect the plastic drain pan regularly to prevent clogs and water damage.
- Check the Blower Motor: Ensure the ECM motor is free of dust and debris. Schedule annual professional inspections to maintain performance.
- Inspect Ductwork: Regularly check for leaks or blockages in the duct system to optimize the efficiency of the Maytag Air Handler Model B5BMX60KC ECM Motor.
- Schedule Annual Maintenance: Have a professional technician service the unit annually to check components like the blower wheel, thermal expansion valve, and control board.
User Reviews and Feedback
The Maytag Air Handler Model B5BMX60KC ECM Motor has received positive feedback for its efficiency and quiet operation. Homeowners praise its ability to maintain consistent temperatures and reduce energy bills. Some users note that the unit’s multi-poise design simplifies installation in tight spaces.
However, a few reviews mention that improper installation can lead to issues like noisy operation or reduced airflow, emphasizing the need for professional setup. Overall, the Maytag Air Handler Model B5BMX60KC ECM Motor is lauded for its reliability and performance when properly maintained.
Where to Buy the Maytag Air Handler Model B5BMX60KC ECM Motor
The Maytag Air Handler Model B5BMX60KC ECM Motor is available through various HVAC distributors and retailers, including:
- Winsupply: Offers the unit with detailed specifications and warranty information.
- Gemaire: Stocks the B6EMMX series, including the Maytag Air Handler Model B5BMX60KC ECM Motor, with fast shipping options.
- PartsHVACPipe: Provides competitive pricing and manufacturer warranties for the 5-ton unit.
- Repair Clinic: Sells replacement parts for maintenance, such as blower wheels and control boards, for the Maytag Air Handler Model B5BMX60KC ECM Motor.
Check with local HVAC contractors for availability and installation services.
Conclusion
The Maytag Air Handler Model B5BMX60KC ECM Motor is a game-changer for homeowners seeking a reliable, energy-efficient, and versatile air handler. Its variable-speed ECM motor, multi-poise design, and durable construction make it a top choice for large homes or commercial spaces.
With features like quiet operation, customizable airflows, and enhanced air quality, the Maytag Air Handler Model B5BMX60KC ECM Motor delivers exceptional comfort and savings. By investing in proper installation and regular maintenance, you can ensure this unit performs at its best for years to come.
Whether you’re upgrading your HVAC system or building a new home, the Maytag Air Handler Model B5BMX60KC ECM Motor is a smart, future-proof choice.
FAQs About Maytag Air Handler Model B5BMX60KC ECM Motor
1. What is the cooling capacity of the Maytag Air Handler Model B5BMX60KC ECM Motor?
The Maytag Air Handler Model B5BMX60KC ECM Motor has a cooling capacity of 60,000 BTU (5 tons), suitable for large homes or commercial spaces.
2. Is the Maytag Air Handler Model B5BMX60KC ECM Motor energy-efficient?
Yes, the variable-speed ECM motor reduces energy consumption by up to 30% compared to traditional motors, lowering utility bills.
3. Can the Maytag Air Handler Model B5BMX60KC ECM Motor be installed in any orientation?
Yes, its multi-poise design allows installation in horizontal, upflow, downflow, or vertical configurations, offering flexibility for various home layouts.
4. How often should I replace the air filter in the Maytag Air Handler Model B5BMX60KC ECM Motor?
Replace or clean the air filter every 1-3 months to maintain airflow and indoor air quality.
5. Where can I find replacement parts for the Maytag Air Handler Model B5BMX60KC ECM Motor?
Replacement parts, such as blower wheels and control boards, are available through retailers like Repair Clinic and Winsupply.
